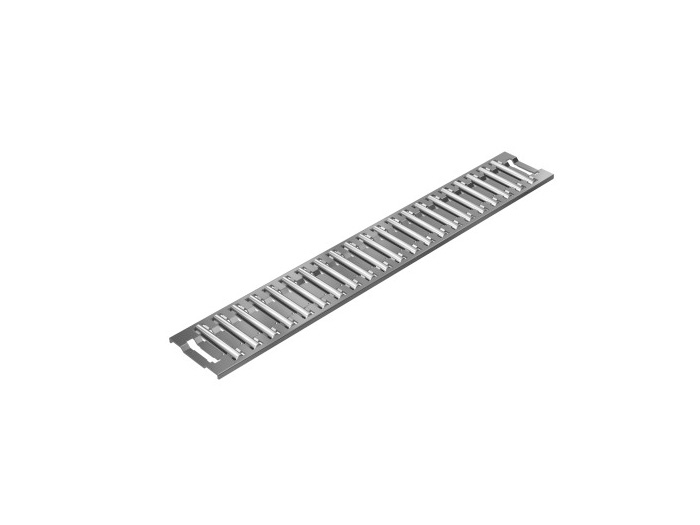

Flat Roller | Flat Surface Type Model FT
FT-V
- Chi Tiết Sản Phẩm

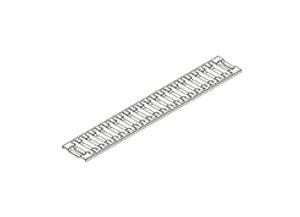

FT-V
These models have a single row of rollers and are mainly used on the flat surface.
Dimensional drawing
|
Model No. |
Main dimensions |
Roller dimensions |
Basic load rating |
||
|
Width |
Length |
Diameter |
Dynamic rating |
Static rating |
|
|
mm |
mm |
mm |
kN |
kN |
|
|
FT 4026V-150 |
26 |
150 |
2.828 |
45.1 |
155 |
|
FT 5030V-250 |
30 |
250 |
3.535 |
78 |
290 |
|
FT 10060V-500 |
60 |
500 |
7.071 |
301 |
1270 |

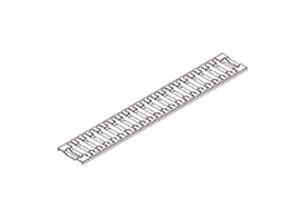

FT
These models have a single row of rollers and are mainly used on the flat surface.
Dimensional drawing
|
Model No. |
Main dimensions |
Roller dimensions |
Basic load rating |
||
|
Width |
Length |
Diameter |
Dynamic rating |
Static rating |
|
|
mm |
mm |
mm |
kN |
kN |
|
|
FT 2010-32 |
10 |
32 |
2 |
5.2 |
10.4 |
|
FT 2515-45 |
15 |
45 |
2.5 |
10.9 |
25.2 |
|
FT 3020-60 |
20 |
60 |
3 |
17.4 |
42.8 |
|
FT 3525-75 |
25 |
75 |
3.5 |
27.4 |
72.7 |
|
FT 4030-150 |
30 |
150 |
4 |
55.7 |
176 |
|
FT 4035-150 |
35 |
150 |
4 |
64.2 |
212 |
|
FT 5038-250 |
38 |
250 |
5 |
109 |
387 |
|
FT 5043-250 |
43 |
250 |
5 |
122 |
449 |
|
FT 10054-400 |
54 |
400 |
10 |
279 |
1000 |
|
FT 10080-500 |
80 |
500 |
10 |
459 |
1900 |
